Products >> Float Level Switch >> Horizontally install

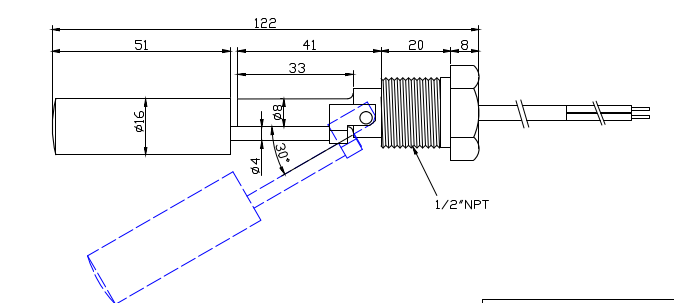

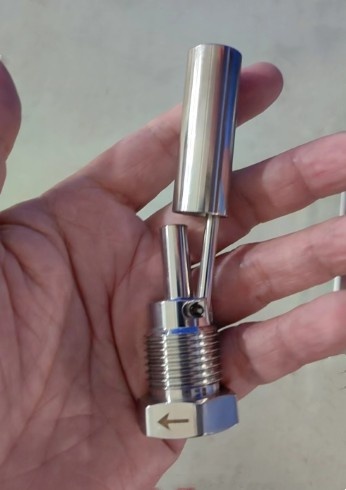

  • SUS 304 stainless steel Float level switch LSSYZ-2 with thread 1/2
SUS 304 stainless steel Float level switch LSSYZ-2 with thread 1/2

SUS 304 stainless steel Float level switch LSSYZ-2 with thread 1/2


www.jsusc.com

Float Level Switch
Specification:
Model NO. LSSYZ-2
Installation Side
Switching Type NO / NC
Material SUS 304 stainless steel
Working Temperature --40~120℃(higher temperature need to be customized)
Wire Gauge UL 3122 22 AWG
Wire Length 300mm
Switching Voltage  22VDC
Switching Current 1A
Contact Rating 50W


 1.Float level switch is widely used in tank level auto control system, startup and shutdown the water pump or electric valve on the basis of liquid level.

 2.Vertical installation switch can be mounted on the top or bottom of liquid tank; side installation switch can be mounted on the wall of liquid tank.

 3.Switching type definition:
   NO: Normally open,mounted switch on the top of tank, switching ON when float rising .
   NC: Normally close,mounted switch on the top of tank, switching OFF when float rising.
