product Introduction

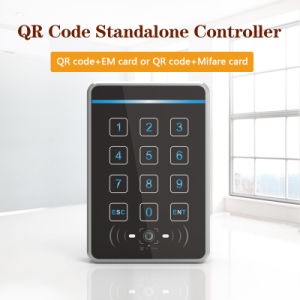

Q60 is Newly developed QR code+RFID Card Standalone controller

Advanced CMOS image recognition technology, it has large capacity storage (10,000 user card information).

Support three opening door method:Google PWA App+ card + password

Parameter


Products Features	communication		Offline
	Management		6 digit Password
	App		Quicklopen
	Reading card type		MF Card
	Reading Range		MF:1~3cm,QR Code:1~20cm
	Card Capacity		≥10000 cards
	Door opening mode		App,Card,Password
	Prompt mode		Buzzer sound, Blue work light on, green light flashes
	Camera pixel		300000 pixels
	Scan resolution		640*480
	Reading angle		Rotate 360 °, tilt ± 45 °, deflection ± 45 °
	Keypad Type		Press
	Open door time		0~99s
	Door ell function		with Doorbell button
Electrical parameters	Work voltage		DC12V
	Work current		100mA
Appearance and packing	Color and material		Black Plastic ABS(metal case optional)
	Size		120×80×18(mm)
	Install hole space		60 mm
	Packing list		(Dynamic QR Code Standalone Controller ,8P wire,manual)×1
Working environment	Working temperature		-10~60ºC
	Working humidity		5%-85%

8P Socket Wire connection	Wire S/N	Color	Interface	Instruction
	1	Red	DC12V	Cathode
	2	Black	GND	GND
	3	Yellow	NC	Relay NC
	4	White	COM	COM
	5	Black	NO	Relay NO
	6	Green	OPNE	Exit button
	7	Yellow	BEEP	Doorbell
	8	Blue	BEEP
