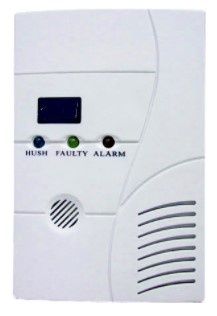

Combustible Gas Detector JS-GD43(12VDC/220VAC optional)

WWW.JSUSC.COM

Model:JS-GD43

Superior gas sensor with Japan technology is adopted for this product, suitable for household.

The ignitable leakage gases can be detected by the method of light/sound alarm and driving the valve to remove the danger.

- Power Source: 220--240V AC with 9V backup battery.

- Sensitivity : 10%LEL

- Power Consumption : ≤0.75W

- Operating Temperature : -10℃ ~ 50℃

- Ambient Humidity : Less than 95% RH

- Horn Level :85 Decibels at 3m

- Low Battery warning.

- Type Of Gas Sensed :

--LPG (Butane, Propane）used in normal and mini gas bottles

-- Gas from piping system (city gas) and natural gas (Methane)

-Test button to test the units electronics and verifies proper unit operation.

- Enter into “HUSH” states for 5min during alarm model. Shut off valve at the same time

CAUTION: This alarm will only indicate the presence of GAS leakage. But gas may be present in other areas.

SIZE : 8.08X13.5X4.8CM
